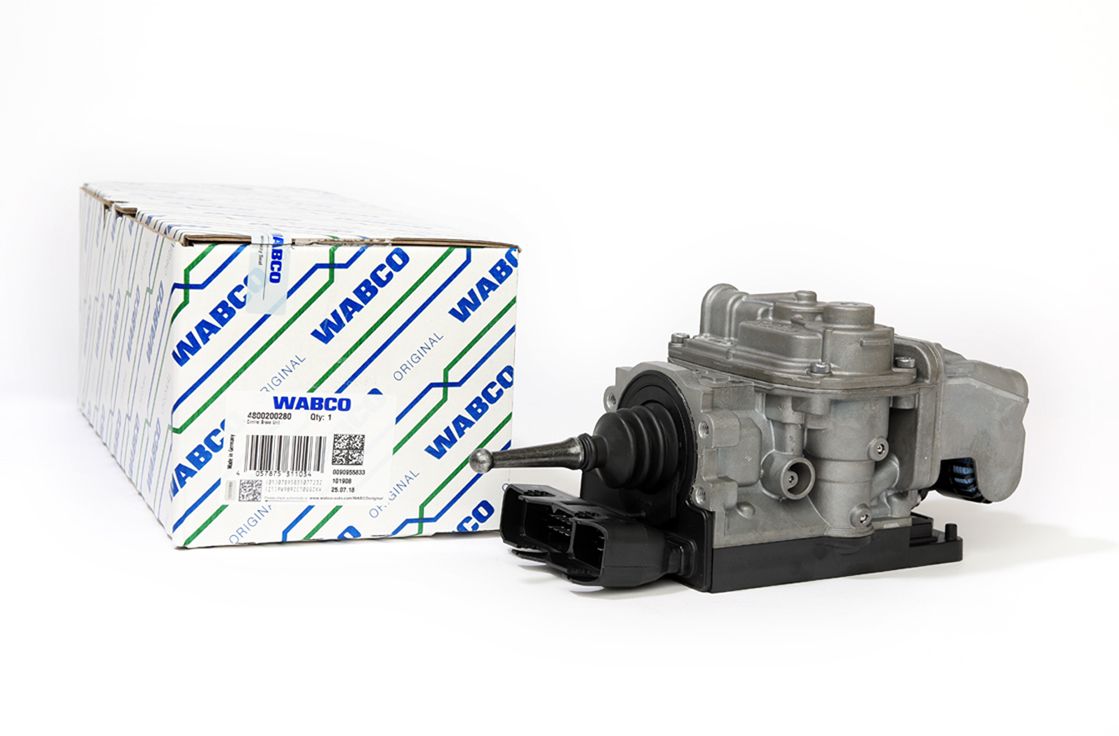

WABCO 4800200280 — EBS Central Brake Unit / Foot Brake Module (MAN)
Genuine-fit WABCO Central Brake Unit (EBS foot-brake module / brake-signal transmitter, MAN “Zentralbremsgerät”) for MAN TG-series trucks. It converts brake-pedal input into a pulse-width-modulated electronic brake-demand signal for the EBS ECU and delivers a dual-circuit pneumatic backup, so braking stays safe if a circuit or the electronics fail. WABCO part number 4800200280 (480 020 028 0).
Specifications
| Manufacturer | WABCO (ZF Group) |
| WABCO No. | 4800200280 / 480 020 028 0 |
| Type | EBS Central Brake Unit / Foot Brake Module (Brake Signal Transmitter) |
| System | Electronic Braking System (EBS) |
| Function | Converts pedal travel into a PWM electronic brake-demand signal with dual-circuit pneumatic backup |
| Design | Dual-circuit electrical + dual-circuit pneumatic |
| Voltage | 24 V |
| Vehicle application | MAN TGA, TGL, TGM, TGS, TGX (EBS) |
OE & Cross-Reference Numbers
| Brand | Reference numbers |
|---|---|
| WABCO | 4800200280, 4800200020, 4800200030, 4800200040, 4800200050, 4800200060, 4800200070, 4800200080, 4800200090, 4800200200, 4800200210, 4800200220, 4800200230, 4800200240, 4800200250, 4800200260 |
| MAN (OE) | 81.52130.6277, 81.52130.6283, 81.52130.6284, 81.52130.6285, 81.52130.6286, 81.52130.6287, 81.52130.6288, 81.52130.6291, 81.52130.6292, 81.52130.6296, 81.52130.6297, 81.52130.6299, 81.52130.6300, 81.52130.6304, 81.52130.6305, 81.52130.6306, 81.52130.6307, 81.52130.6308, 81.52130.6309, 81.52130.6310, 81.52130.6311, 81.52130.6312, 81.52130.9312 |
| DAF (OE) | 1522235 |
| AIR FREN | K039530N50 |
| COJALI | 352612, 352613, 352614, 352623, 352624 |
| DT Spare Parts | DT3.72069, DT3.72201 |
| KNORR-BREMSE | 0486200007000, K039530N50 |
Cross-references cover the full MAN EBS central-brake-unit family. Variants differ by software/configuration — please confirm the exact part against your vehicle's MAN OE number before ordering.
