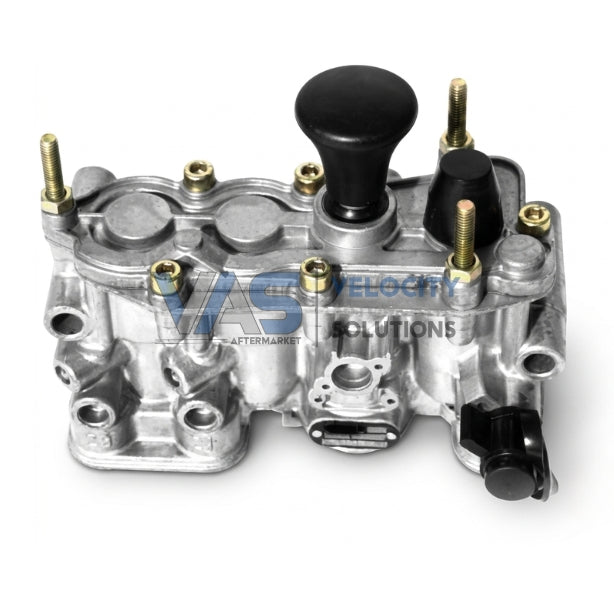

LIFT AXLE CONTROL VALVE 4630840000
VAS REF: 7581371111
| Specification | Value |
| Actuation | Manual |
| Application | Trailer |
| Bolt lengths | $12.0\text{ mm}$ |
| Max. operating pressure | $13.0\text{ bar}$ |
| Port thread 1 | $\text{M16} \times 1.5$ |
| Port thread 2 | $\text{M22} \times 1.5$ |
| Port thread 21 | $\text{M16} \times 1.5$ |
| Port thread 22 | $\text{M16} \times 1.5$ |
| Port thread 23 | $\text{M16} \times 1.5$ |
| Port thread 24 | $\text{M16} \times 1.5$ |
| Port thread 3 | Flap exhaust |
| Port thread 41 | $\text{M16} \times 1.5$ |
| Port thread 42 | Test Connection |
| Product category | Device |
| Range of adjustment | $2\text{ to } 7\text{ bar}$ |
| Switch pressure | $4\text{ bar}$ |
| Technical specification | OE specification |
| Temperature range | $-40^\circ\text{C}\text{ to } +80^\circ\text{C}$ |
| Type | LACV |
| Version | Dual-circuit |
|
|
CROSS REFERENCE:
-
DAF867872
-
DAF0867872
-
FAYMONVILLE01162
-
FAYMONVILLE6114
-
FELDBINDER061847
-
FRUEHAUFMO58229
-
GOLDHOFER163321
-
HENDRICKSON4630840000
-
KEMPF1133002
-
KENWORTHS4630840000
-
KÄSSBOHRER21153104010
-
LANGENDORF1111150
-
LECITRAILER6280101
-
MACK8235-S4630840000
-
MANZG046200002
-
MERITORS4630840000
-
NOOTEBOOM1075359
-
NOOTEBOOM201658
-
PETERBILTS4630840000
-
SAF4425013800
-
SCANIA1738469
-
SCHMITZ CARGOBULL50951
-
SCHMITZ CARGOBULL050951
-
TIRSAN21153104010
- SORL
RL3548KA -
VAN HOOL10582267
-
VOLVOWA4630840000
-
ZORZI1013153
