Bendix 107506 / 107506X Tu-Flo 550 (TF-550) Air Brake Compressor – Cummins ISM, N14, M11
Bendix Tu-Flo 550 (TF-550) Air Brake Compressor – 107506 / 107506X / OR107506
For Cummins ISM, N14 and M11 engines · 13.2 CFM · Water-cooled · Flange mount
Lead time to our warehouse: 15-20 WORKING DAYS

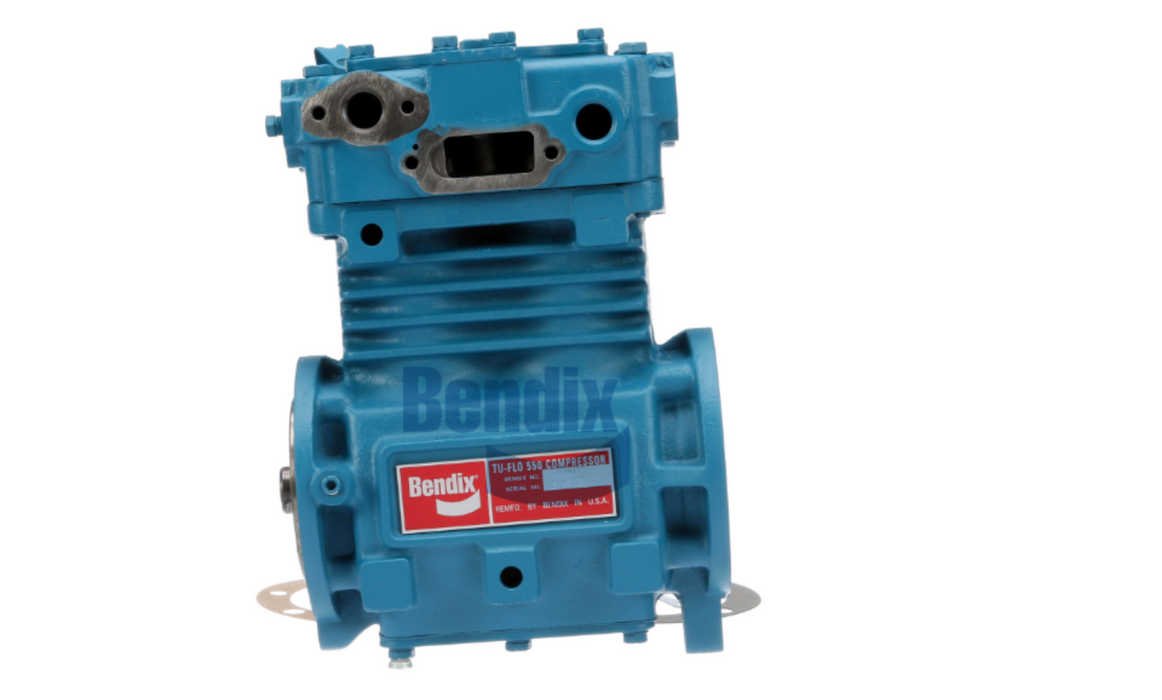

The Bendix 107506 Tu-Flo 550 is a direct-replacement air brake compressor for heavy-duty trucks with Cummins ISM, N14 and M11 engines (Core Class 1B). It is a two-cylinder, single-stage reciprocating compressor rated at 13.2 CFM at 1250 RPM, supplying and maintaining pressurized air for the air brake system and auxiliary air devices.
The compressor is built from two main subassemblies: the cylinder head and the crankcase. The cast-iron cylinder head houses the inlet, discharge and unloader valves, with the air inlet port and both top and side discharge ports. A discharge line safety valve protects the head if the discharge line freezes, and Bendix end-of-line tests every air brake compressor. The remanufactured 107506X is supplied with the gear and gasket kit for a complete installation.
Key features
- Direct fit for Cummins ISM, N14 and M11 double-flange compressor mounts
- Two-cylinder, single-stage design delivering 13.2 CFM at 1250 RPM
- Water-cooled cast-iron cylinder head for stable operating temperatures
- Top and side discharge ports for flexible discharge line routing
- Discharge line safety valve protects against freeze-up damage
- End-of-line tested by Bendix for quality and reliability
Technical specifications
| Brand | Bendix |
|---|---|
| Series | Tu-Flo 550 (TF-550 / TF550) |
| Part numbers | 107506 (service), 107506X (remanufactured) |
| Design | Two-cylinder, single-stage, reciprocating |
| Rated displacement | 13.2 CFM at 1250 RPM |
| Bore / stroke | 2.78 in. / 1-1/2 in. |
| Mounting | Flange mount, Cummins double flange (flange type C) |
| Drive | Engine driven, without clutch |
| Cooling | Water cooled |
| Port location (viewed from rear) | Air inlet: left · Discharge: top or left |
| Approx. weight | 53 lb (24 kg) |
| Core class | 1B |

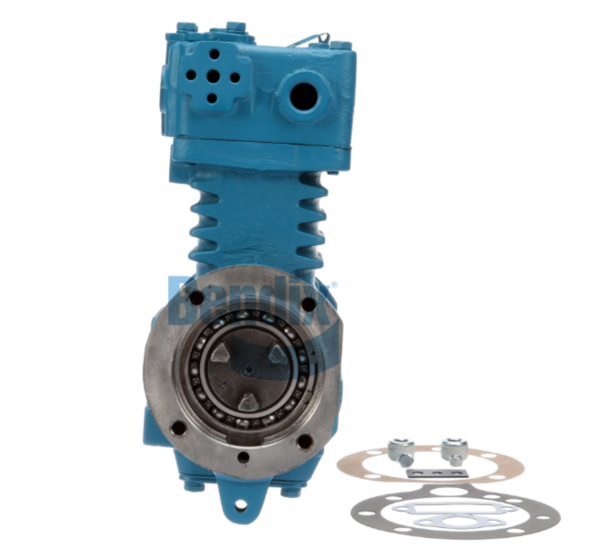

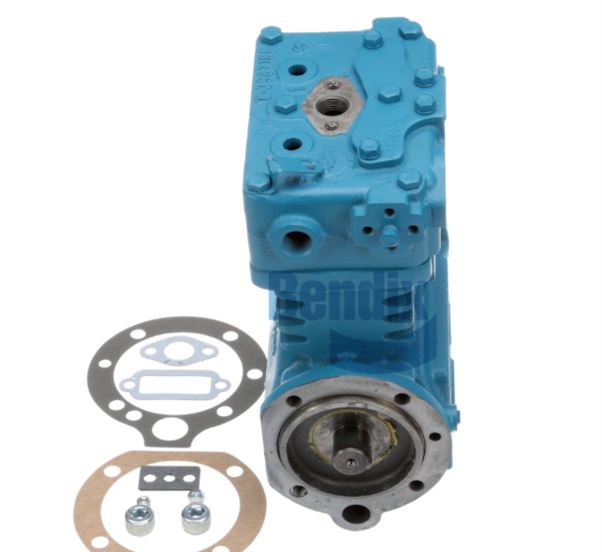

| Supplied with | Gear and gasket kit (107506X remanufactured) |
| Unloader kit | Meritor R955153150 |
| Mounting gasket kit | Meritor R955153108 |
| Inlet flange gasket | Bendix 243430N |
Applications
- Cummins ISM
- Cummins N14
- Cummins M11
- Earlier Cummins Big Cam installations
- Class 8 trucks with these engines, including Peterbilt, Kenworth, Freightliner, International, Volvo and Western Star
Cross references, OE and superseded numbers
| Brand / source | Part numbers |
|---|---|
| Bendix (supersedes / changes over to 107506X) | 107506, 107506X, 65197, 107000, 107974, 107975, 108583, 109197, 5001710, 5003264 Bendix 107975 is superseded by 107506. |
| Bendix leading-zero variants | 065197, 0107000, 0107506, 0107974, 0107975, 0108583, 0109197 |
| Cummins | 3069211, 3074470, 3074470RX, 3166445, 3417958, 3417958NX, 3417958RX, 3522291, 3609999 |
| Navistar / International | 1672563C92, 1694006C91, FLTBC106, ZZ107506X |
| Volvo | 70001-8001, 700018001 |
| PACCAR (Peterbilt / Kenworth) | 107506BXR |
| Meritor | R955107506X, R955EL13040X |
| Haldex | 107506X (LikeNu remanufactured TF550) |
| Other aftermarket / reman | EL13040, EL13040X, KN13040X, N13AC, ABPN13AC3417958, BC2-25565, BC225565, E12977284 |
| Distributor-prefixed versions | OR107506, 107506B1, 107506X-BW, 107506XBW, 04625107506X, 175107506X, 53-107506X, 53107506X, 745-107506X, 745-X107506, 745107506X, 745X-107506, 745X107506, BAR107506, BBH-107506, BBH107506, BE107506, BE107506X, BW R107506, BW107506, BW107506X, BWR107506, BX 107506X, BX065197, BX107000, BX107506, BX107506B1, BX107506X, BX107974, BX107975, BX108583, BXR107506, BXR107506X, BXX107506X, CC107506, E-BN107506X, EBN107506X, EUEBN107506X, HVG107506X, MB107506X, MI107506X, MSBX107506X, P107506, R107000, R107506, R107506X, R107974, R108583, WBW-107506X, WBW107506X |
Before you order
Match the part number on your compressor's nameplate, or send us your engine serial number and we will confirm fitment. This compressor is for Cummins flange applications only. Caterpillar TF-550 compressors use a different flange and are not interchangeable with this unit.
