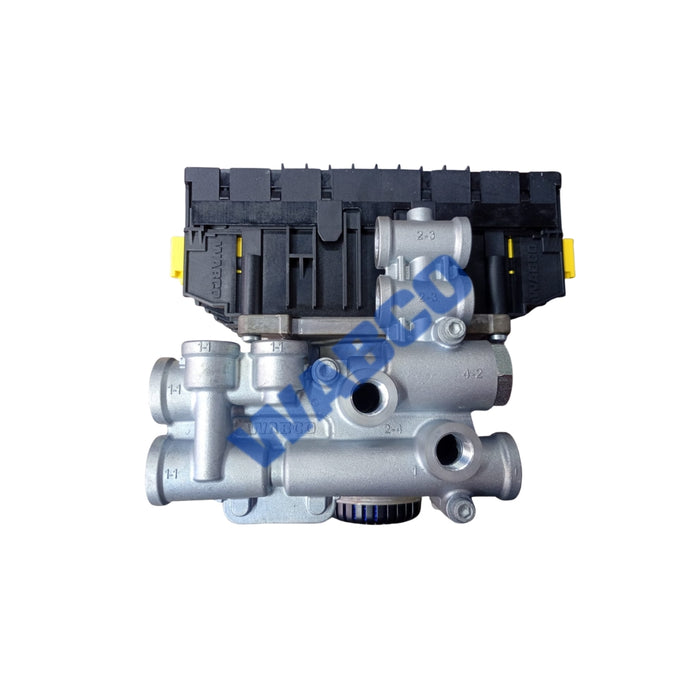

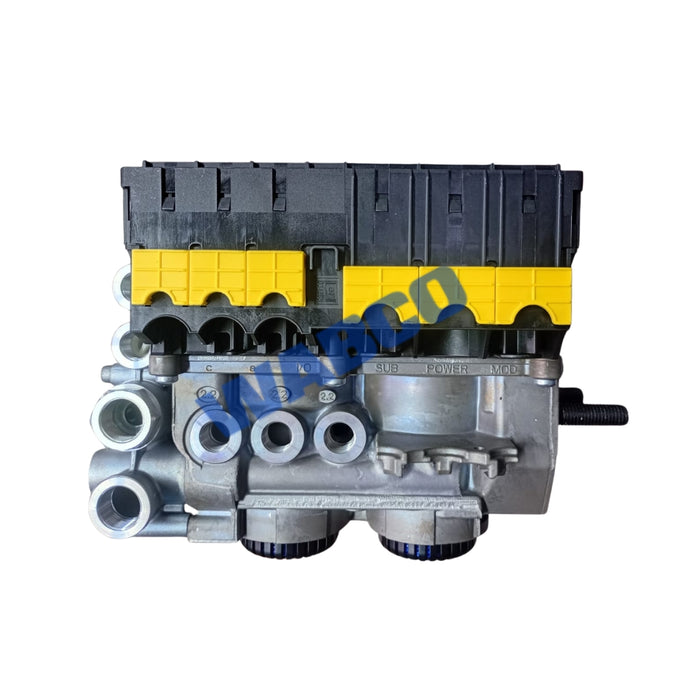

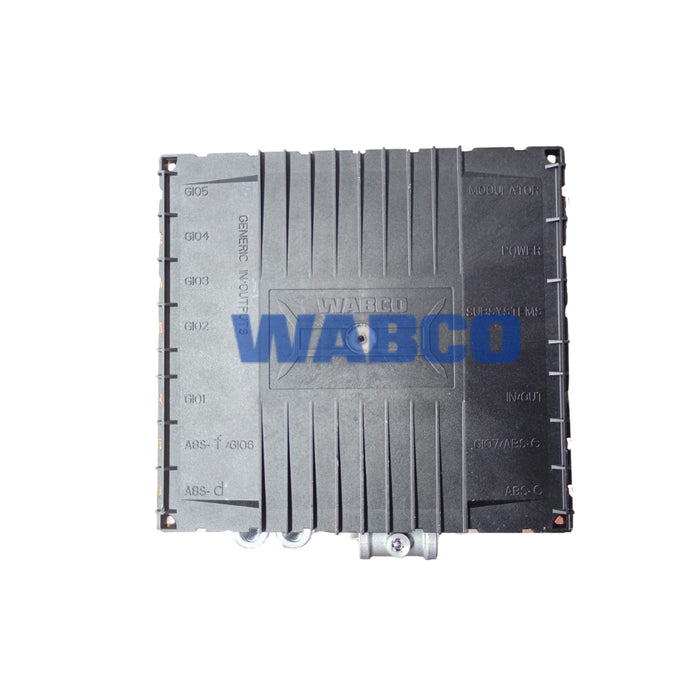

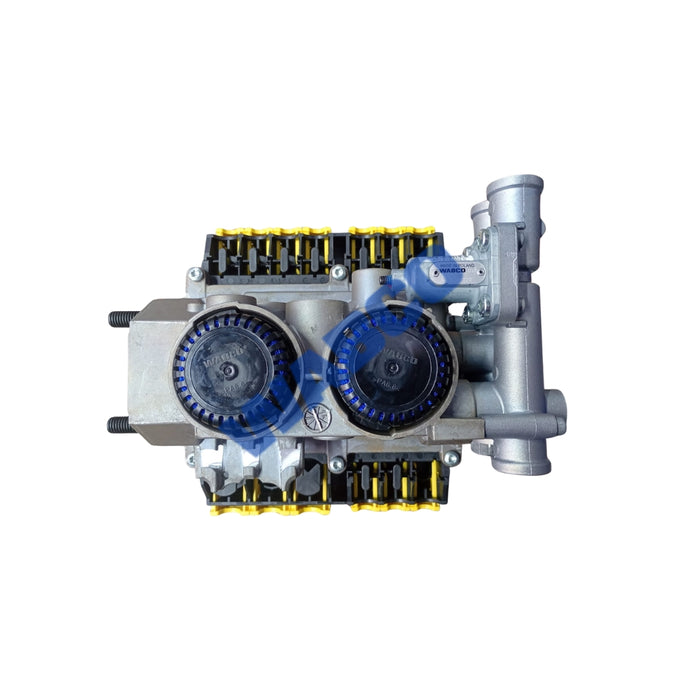

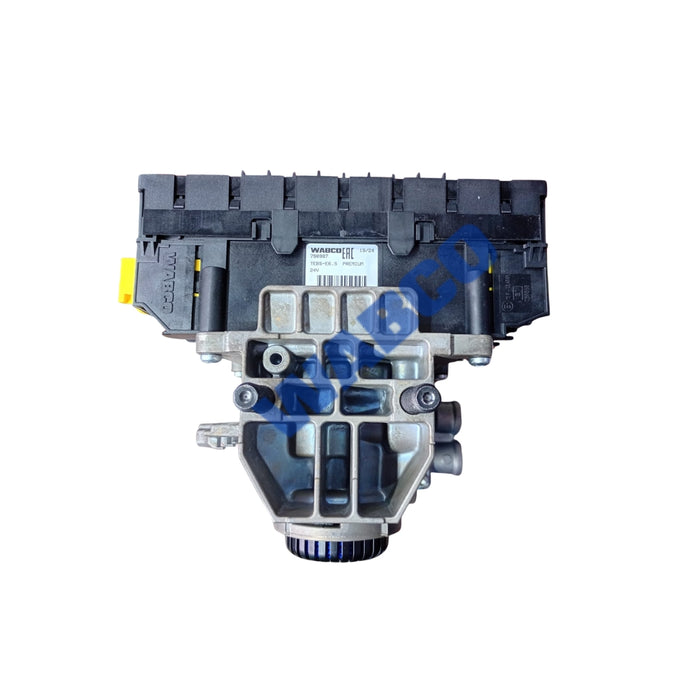

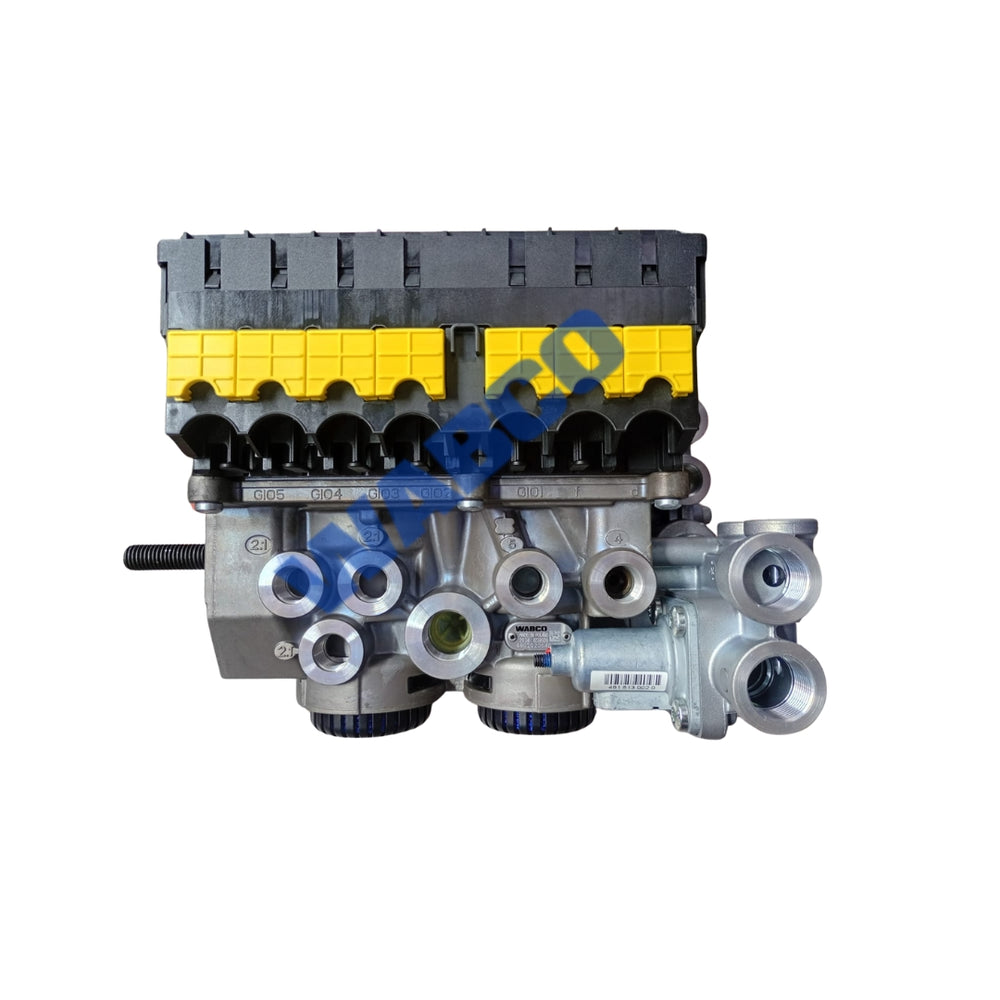

WABCO EBS-Trailer Modulator 24V, 4801020640

LEAD TIME: 7-10 DAYS

Cross References:

• BENALU
  004656110
• FAYMONVILLE

  187616

• FRUEHAUF
  5311-071-01
• LECITRAILER
  4302041
• LOHR
  A05101485
• SCANIA
  1935127
• WABCO 4801020600  480102060R    480102067R

Specifications

• Brand
  WABCO
• Part type
  Premium original quality
• Calculated Volume (dm³)
  12.46
• Distance between bolts
  70 mm
• Max. operating pressure
  8.5 bar
• Mounting
  2x M12
• Port thread 1
  M22 x 1.5 JED-152 / M16 x 1.5 JED-152
• Port thread 11
  M22 x 1.5 JED - 152 / M16 x 1.5 JED - 152
• Port thread 21
  M16 x 1.5 JED - 152
• Port thread 22
  M16 x 1.5 JED - 152
• Port thread 23
  M16 x 1.5 JED - 152
• Port thread 24
  M16 x 1.5 JED - 152
• Port thread 3
  2 Integrated Silencer
• Port thread 4
  M16 x 1.5 JED - 152
• Port thread 42
  M16 x 1.5 JED-152
• Port thread 5
  M16 x 1.5 JED-152
• Product category
  Device
• Protection class
  IP 6K9K
• System
  4S/3M
• Technical specification
  OE specification
• Temperature range
  -40°C to +65°C
• Type
  Premium
• Version
  TEBS E with PEM
• Voltage
  24 V
• Size (mm x mm x mm)
  224 x 281 x 198
• Weight (kg)
  6.234
• Weight (lb)
  13.74
